Checkout URL

Our Checkout solution allows a merchant to generate a secure payment link to collect payments from customers via various channels (Mobile Money, Card, Bank). This provides a seamless, hosted payment page experience where the customer completes the transaction.

Note: Currency and channel availability depends on your business account permissions. Contact support to enable additional options.

How it works

The Checkout flow is simple and allows you to securely accept payments without building your own payment UI. Here is the typical journey:

Initiation: Send a POST request to generate a Checkout URL.
Redirection: Redirect your customer to the generated checkout_url.
Payment: The customer chooses their preferred payment channel (e.g., Mobile Money) and completes the payment on the hosted page.
Verification: Once the payment is completed, OGateway processes it and sends a Webhook to your callbackURL confirming the success or failure.

Base URL

https://api.ogateway.io

Authentication

All requests must include your API key in the Authorization header:

Authorization: your_api_key

Generate Checkout URL

Generate a secure unique link to collect payment from a customer.

Endpoint: POST /collections/checkout

Body Parameters

Parameter	Type	Required	Description
amount	number	Yes	The amount to charge (e.g., 100.50).
currency	string	Yes	The currency code. See Currency codes
callbackURL	string	No	The URL for the final transaction status webhook. This overrides the default callback URL saved under your business.
channels	array of string	No	Specific payment channels to enable for this checkout session (e.g., `["MOMO", "CARD", "BANK"]`). If omitted, all enabled channels for the currency will be shown.

Example Request

curl --request POST \
  --url https://api.ogateway.io/collections/checkout \
  --header 'Authorization: your_api_key' \
  --header 'Content-Type: application/json' \
  --data '{
    "amount": 100.50,
    "currency": "GHS",
    "callbackURL": "https://your-website.com/webhook",
    "channels": ["MOMO", "CARD"]
  }'

Example Response (200 OK)

The response contains the id of the checkout session and the checkout_url to redirect your customer to.

{
  "id": "32771d91-a45b-4fc9-b6f4-fc299efce9ec",
  "checkout_url": "https://ogateway.io/checkout/khePqkknRMeN"
}

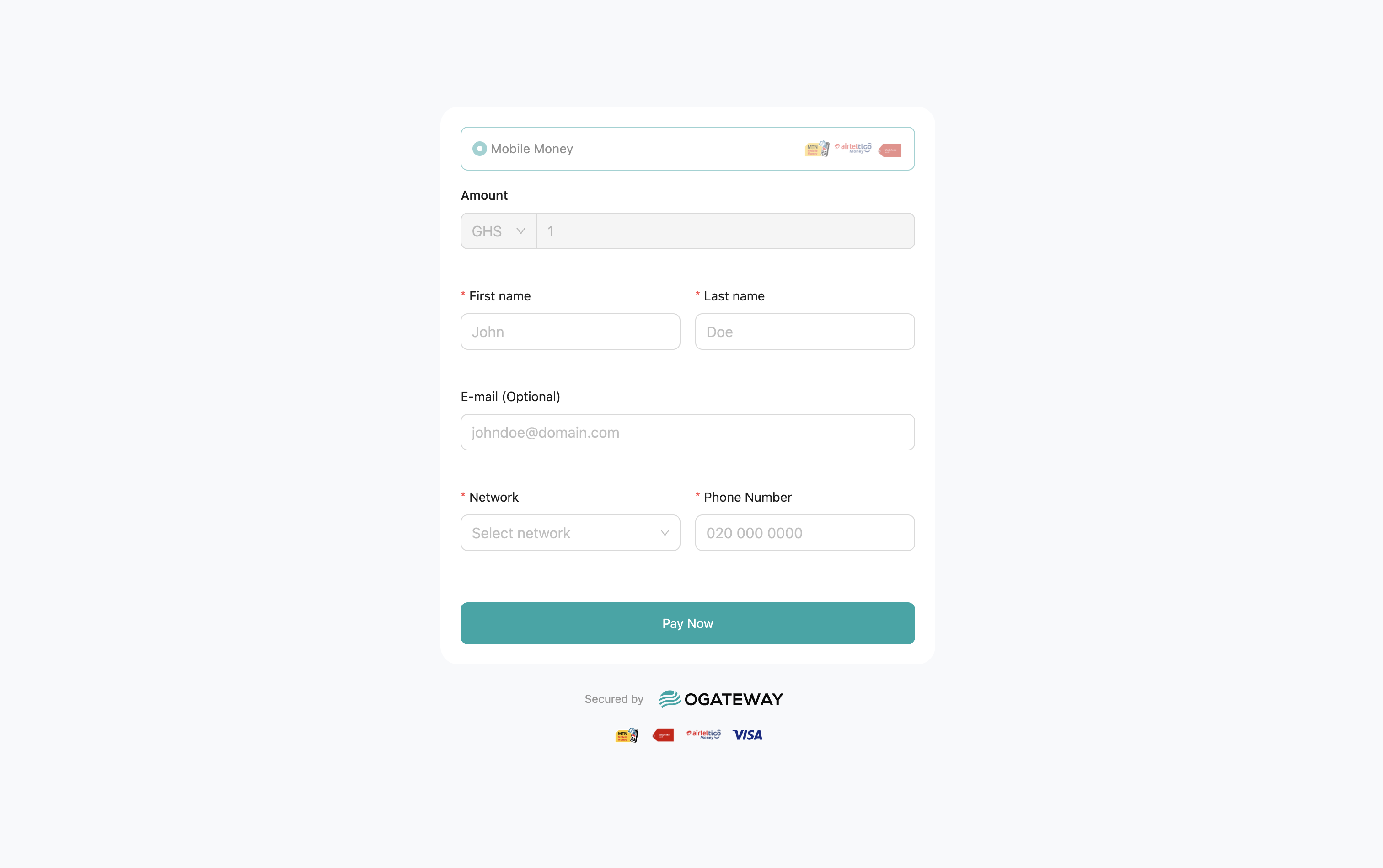

Here, when you click on the checkout url, it shows you a page like this:

See Error Codes for Error Responses.

Handling the Callback

See full details in our Callbacks section

Since Checkout transactions depend on the customer completing the payment on the hosted page, you should listen for a Webhook event at the callbackURL you provided to confirm the final status.

Success Payload Example

{
  "id": "32771d91-a45b-4fc9-b6f4-fc299efce9ec",
  "amount": "100.50",
  "fee": "1.50",
  "currency": "GHS",
  "status": "COMPLETED",
  "channel": "MOMO",
  "type": "DEBIT",
  "reason": "Checkout",
  "network": "MTN",
  "bear_fee": "business",
  "customer": {
    "accountName": "John Doe",
    "accountNumber": "0249123456"
  },
  "metadata": {},
  "created_at": "2023-07-06T13:35:41.308Z",
  "updated_at": "2023-07-06T13:38:46.308Z",
  "checkout_url": "https://ogateway.io/checkout/khePqkknRMeN",
  "error_message": null,
  "telco_response": "APPROVED",
  "virtual_account": null,
  "provider_message": "Success",
  "reference_business": "checkout_1718272547612"
}

Failed Payload Example

{
  "id": "32771d91-a45b-4fc9-b6f4-fc299efce9ec",
  "amount": "100.50",
  "fee": "0",
  "currency": "GHS",
  "status": "FAILED",
  "channel": "MOMO",
  "type": "DEBIT",
  "reason": "Checkout",
  "network": "MTN",
  "bear_fee": "business",
  "customer": {
    "accountName": "John Doe",
    "accountNumber": "0249123456"
  },
  "metadata": {},
  "created_at": "2023-07-06T13:35:41.308Z",
  "updated_at": "2023-07-06T13:40:41.308Z",
  "checkout_url": "https://ogateway.io/checkout/khePqkknRMeN",
  "error_message": "4200 | Customer | Customer failed to 1. Respond to the prompt on time or 2. Enter the correct pin",
  "telco_response": "Request timeout",
  "virtual_account": null,
  "provider_message": "Failed",
  "reference_business": "checkout_1718272547612"
}

Best Practices

Webhook Security: Verify webhook signatures to ensure callbacks originate from OGateway. See our Callback / Webhook Security guide for implementation details.
Idempotency: Use the Checkout session id to query the status if you do not receive a webhook in a reasonable time, before assuming failure.
Amount Limits: The system enforces minimum and maximum transaction limits based on the currency and channel. Ensure amounts are within limits to avoid rejection.
Test Mode: Use test API keys (starting with test_) during development. Checkout links generated in test mode will direct you to a simulated payment page where you can test success and failure flows without real money.
